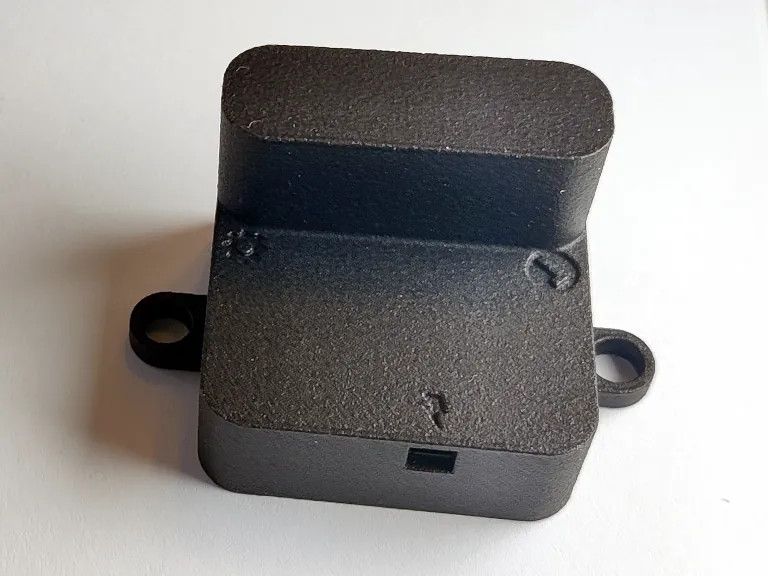

Db121: DoC RID000000088 Db121pcb: DoC RID000000089 EU Declaration Of Conformity Specifications FAA approval: RID000000088 Short-range radio: Bluetooth and WiFi 2.4GHz, output power (ERP): 20 dBm (100 mW) Positioning: GPS, GLONASS, 2.5m positioning precision Antennas: 0 dBi WLAN/BLE antenna (internal omni-directional high-performance PCB antenna) 0 dBi GLS antenna Power: 2-pin JST-GH 1.25mm connector 5 – 14 V LED lights: status, configuration mode Enclosure: plastic (nylon) Fastening mechanism: 3M dual-lock or M5 screws using the screw noses IP rating: IP43 Operating temperature: -5°C to 40°C Dimensions: 36 x 38 x 28 mm. With screw nodes the dimensions are 36 x 55 x 28 mm Weight: 11 grams
